Mine Sieving Mesh

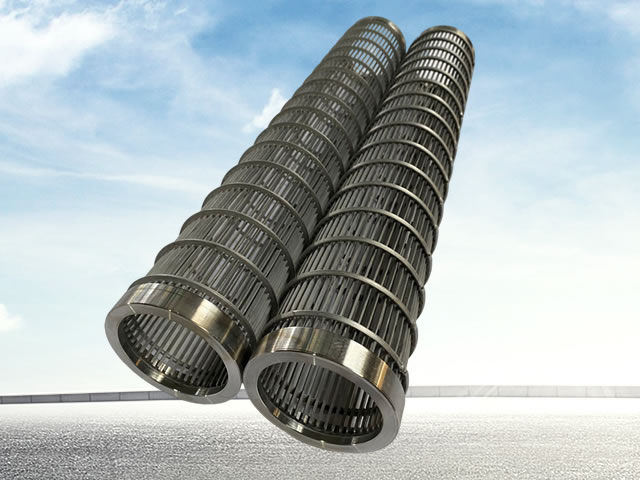

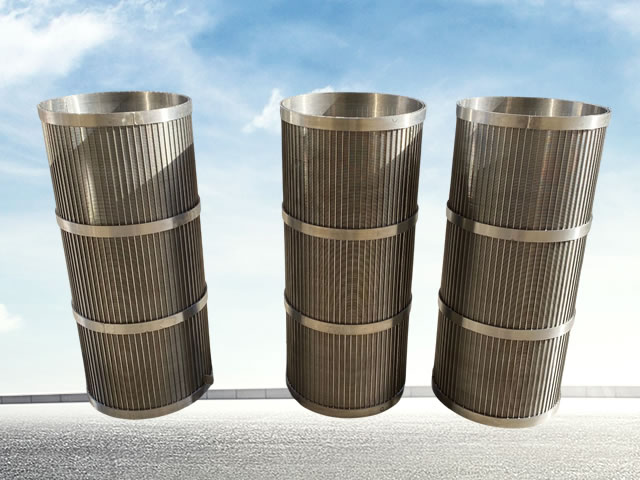

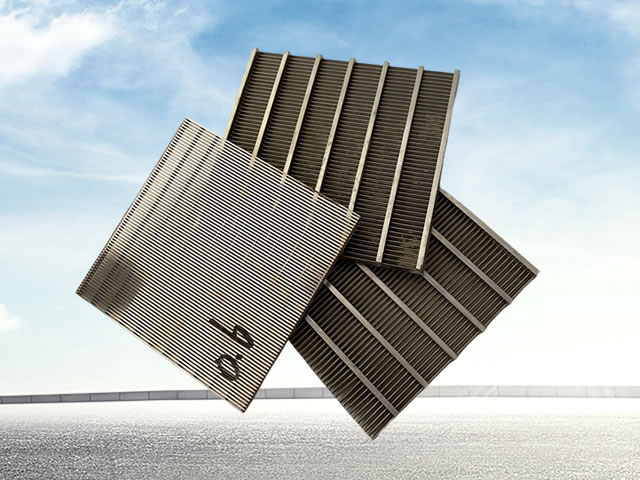

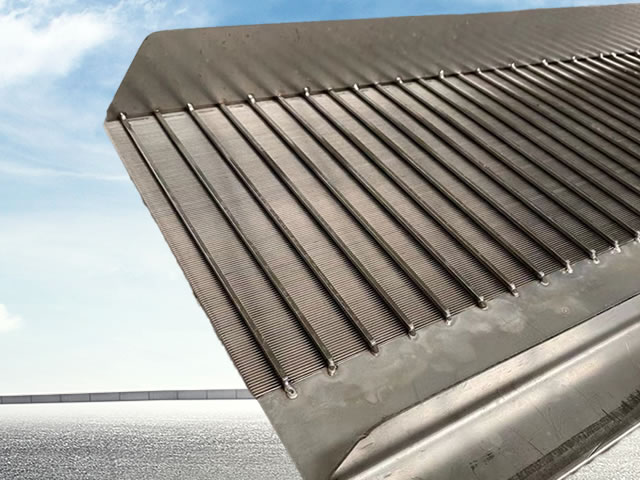

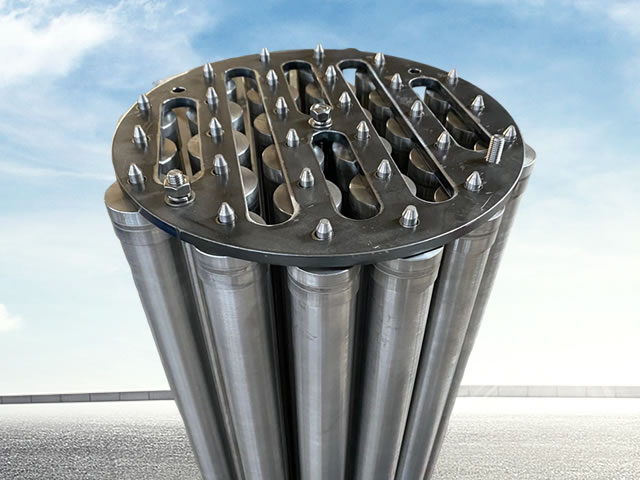

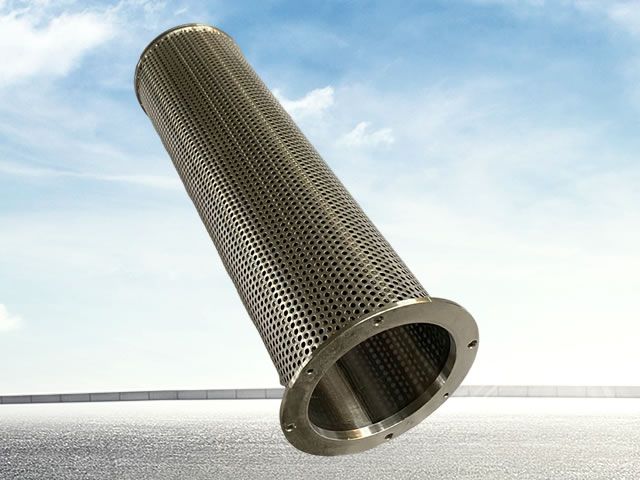

stainless steel wedge wire is welded into screen. Filter rating range from 15-800 micron are available. Wedge filter is welded with stainless steel wedge shaped wire and support bar. Major products include filter plate, filter basket and filter elements. Mostly used as water well screen or oil well screen.

Materials: 304, 302, 304L, 316, 316L stainless steel wire, Duplex SS, Supper Duplex SS.

Advantage:
-High hardness, High strength, High-durability
-Larger effective filtration area
-Uniform gap
-Clog proof design

Specification:
-Filtration rate: 15-800μm
-OD: 25.4-1200mm, Length: 6 meter(no splice)
-Wedge filter is valid in kinds of shapes, such as Square, rectangle, disc, basket, tube, cone.
-The slot: 0.1mm-45mm
-Wire :2.0mm*30.mm,3.0mm*4.6mm,3.0mm*5.0mm
-The rods:3.8mm/22, 3.8mm/32, 3.8mm/48, 3.8mm/50.
-Height 6-40 mm
-The rod can be round wire, triangular wire or trapezoid wire. The warp is triangular wire (V-shaped wire).
-Slot filter is valid in kinds of shapes, such as Square, rectangle, disc, basket, tube, cone.
-Styles of connection: by welding or by threaded male/female coupling.
-Aoshuai Filter dimension can be customized by your demands.

Application:
-Petrochemical industry: catalytic reaction engineering, hydrogen desulfurization, stupid ethane dehydrogenation, ammonia conversion, ISOM.
-Water treatment
-Mineral processing
-Paper making
-Food and drinking industry
